One-Stop Oilfield Hose Manufacturer

We provide a one-stop supply of oilfield hose products, including drilling hoses, mud hoses, fracturing hoses, cementing hoses, and other high-pressure oil and gas transportation hoses.

Request Our Latest Price

Why Choose Our Oilfield Hoses

Stable High-pressure Resistance
For Complex Oilfield Environments
Multiple Structures &Sizes Available
100% Water Pressure Testing
Accepts Third-partyInspection
Custom for Specific Requirements

Send Inquiry Now

Professional Oilfield Hose Supplier

JIuyi manufactures high-pressure drilling hoses, fracturing hoses, mud hoses, and cement slurry hoses specifically designed for the high-pressure, high-abrasion, and high-impact environments of the oilfield. These hoses utilize high-performance rubber and reinforced construction, offering excellent pressure resistance, abrasion resistance, and oil resistance. We provide reliable oilfield hose solutions and OEM/custom manufacturing services for oil and gas projects.

Oilfield Hose Products Types

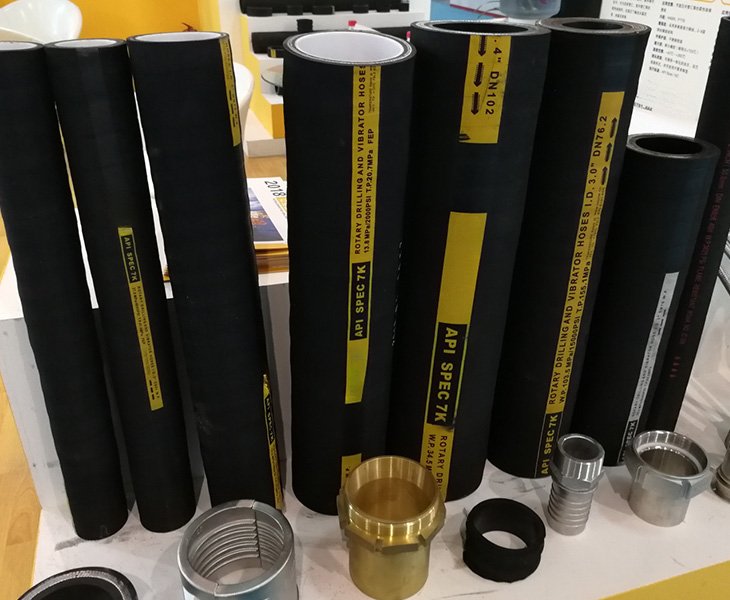

Our oilfield hoses mainly used for API 7k high-pressure rotary drilling applications, choke and kill systems, oilfield cementing & hydraulic fracturing operations, flexible choke line, and BOP applications.

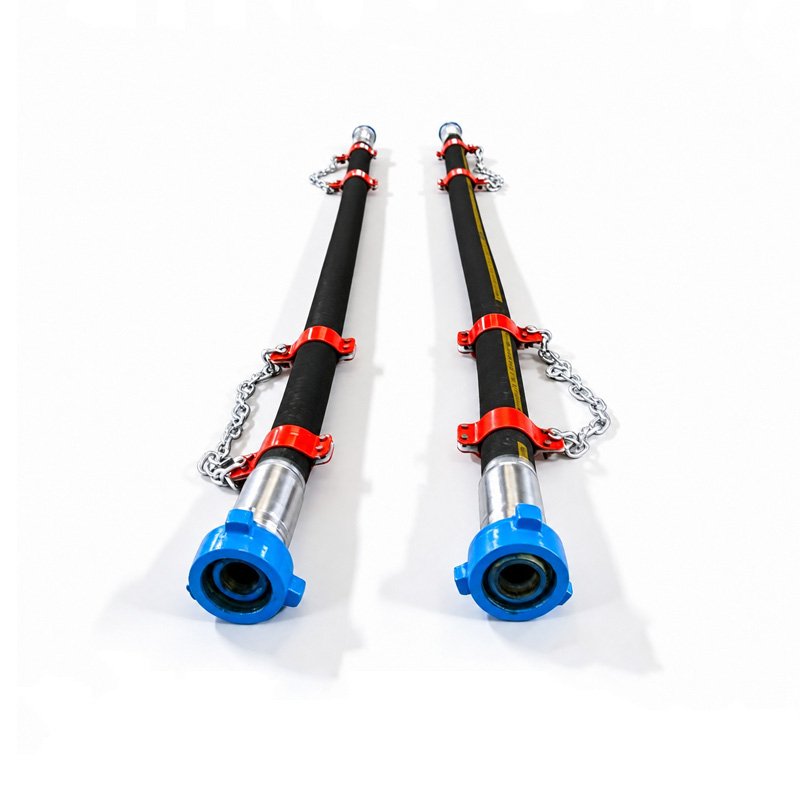

Rotary Drilling Hose

Used in high-pressure drilling systems,it can adapt to harsh oilfield operating environments.

Send Inquiry Now

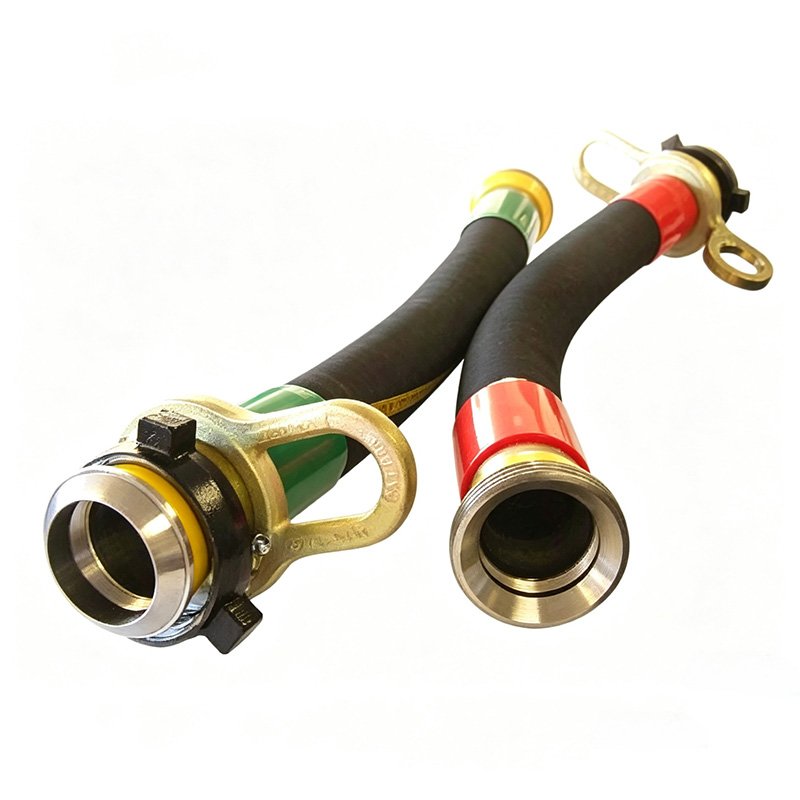

Mud Hose

Heavy-duty hoses used for conveying drilling slurry under harsh pressure, operating conditions.

Send Inquiry Now

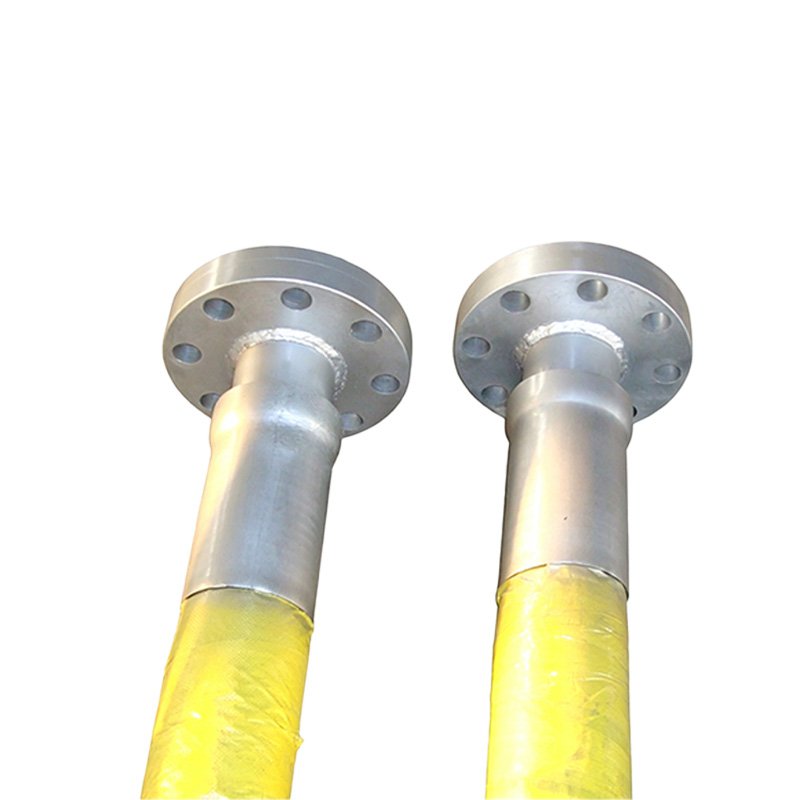

Cementing Hose

For high-pressure cementing operations, it provides reliable fluid delivery and long-term performance.

Send Inquiry Now

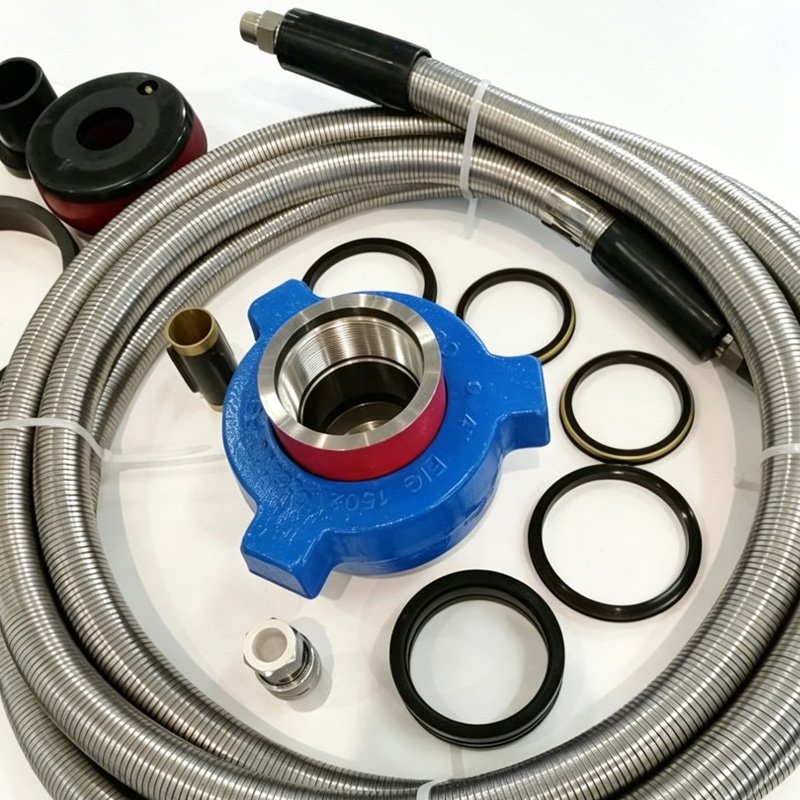

BOP Hose

Designed for reliable pressure control and fluid transfer in demanding blowout preventer applications.

Send Inquiry Now

High Performance Oilfield Hose

High Pressure Oilfield Hose

Oilfield Drilling Hose

Mud Transfer Capability

Abrasion Resistant Rubber

High Strength Reinforcement

Flexible Oilfield Pipeline

Custom End Connections

Oil & Weather Resistance

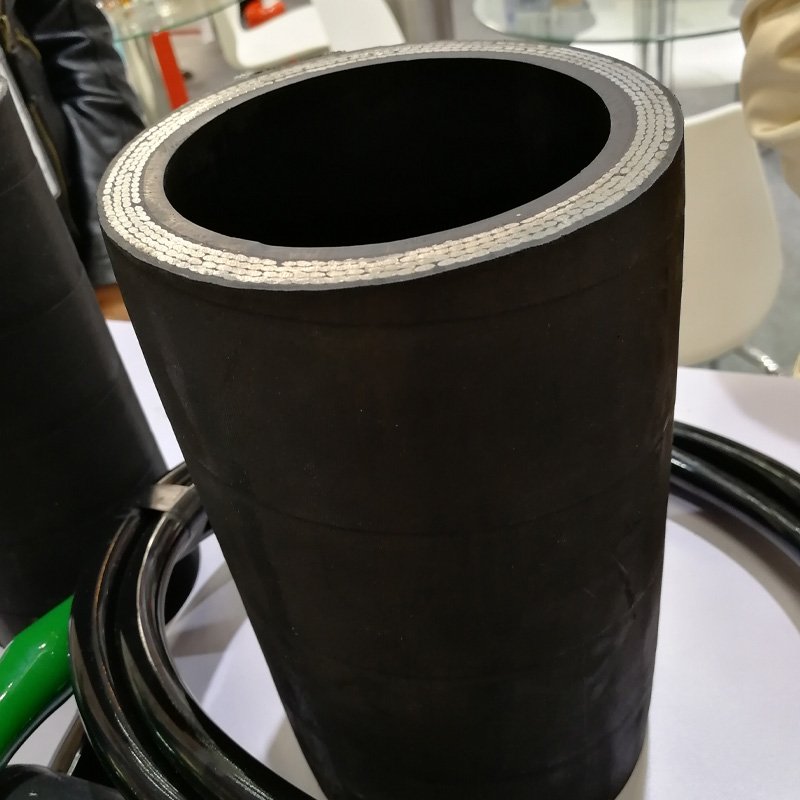

High Pressure Oilfield Hoses

Jiuyi’s oilfield hoses feature a 2-8 layer high-strength steel wire spiral reinforcement structure, with customized pressure ratings to suit different equipment and applications. They can withstand working pressures from 1000 PSI to 20000 PSI. We help systems maintain stable fluid delivery performance under high pressure fluctuations in oil, gas, drilling, cementing, fracturing, mud delivery, well control, acidizing, production, and other oilfield operations.

Send Inquiry Now

Custom Standards & Special Models

We can provide the most suitable oilfield hose solutions based on different working pressures, conveying media, inner diameters, lengths, temperature ranges, and connection methods. The outer rubber features a super wear-resistant design, the inner rubber is formulated according to the type of conveying media, and a reinforcing layer is suitable for the operating conditions. These three features can help extend the service life of your drilling pipe.

Send Inquiry Now

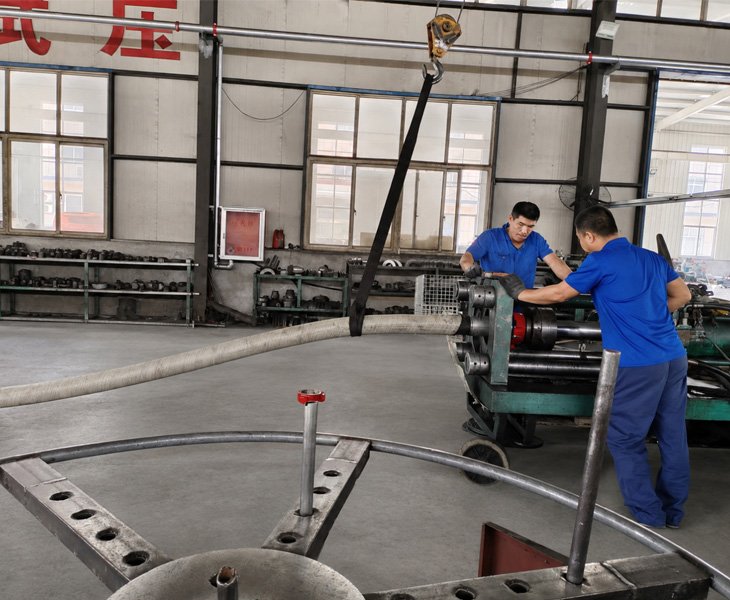

Your Trusted Oilfield Hoses Manufacturer

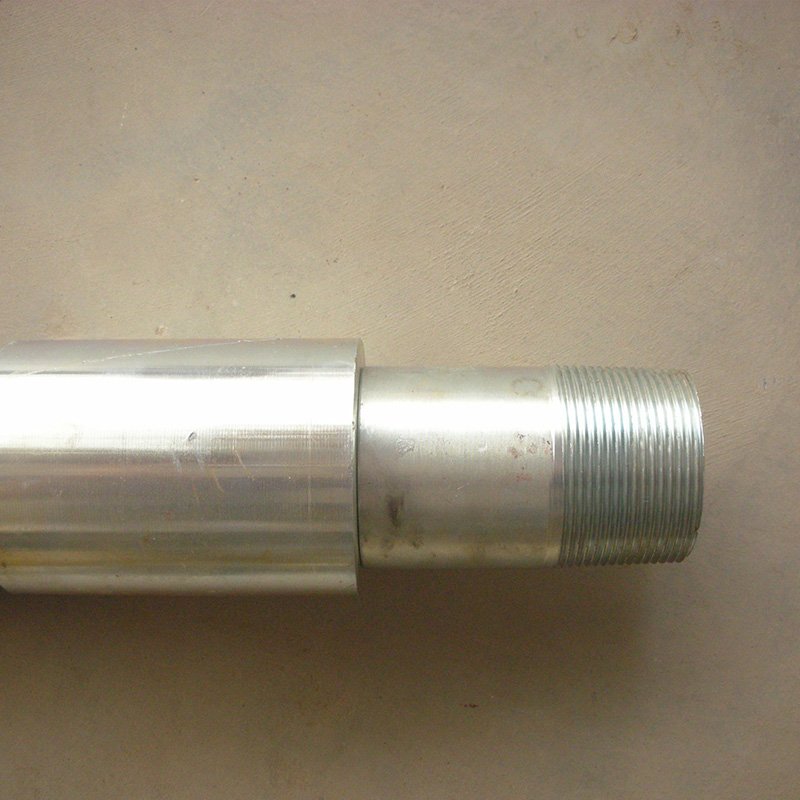

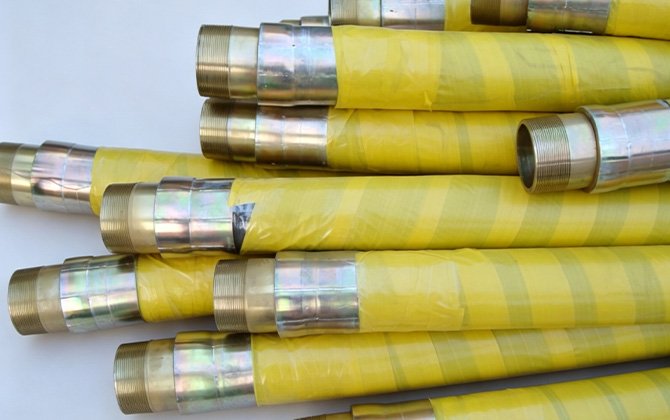

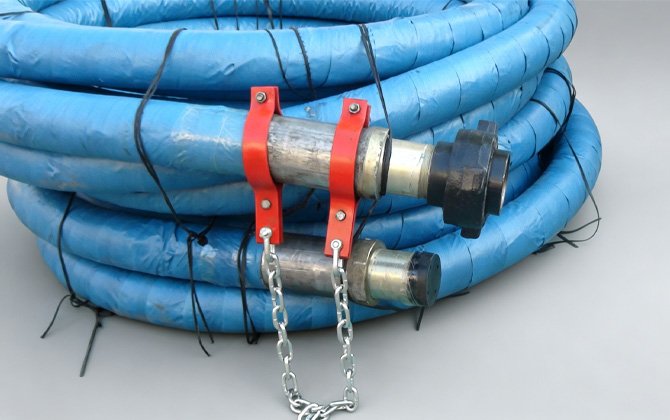

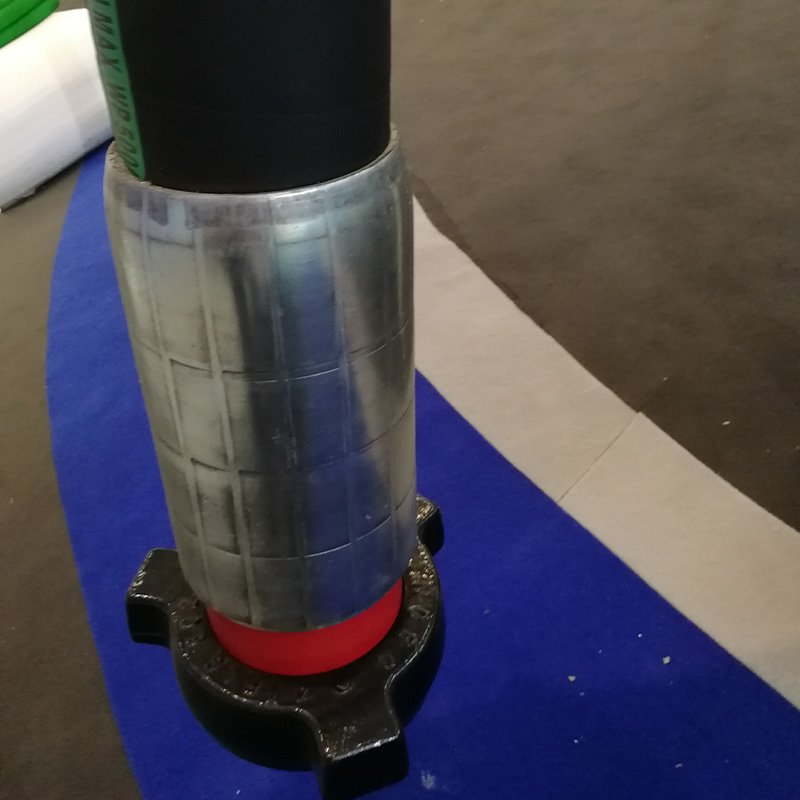

Jiuyi Company possesses mature hose manufacturing technology and can provide you with suitable high-pressure, wear-resistant, and oil-resistant drilling hose assemblies. We can install flanges, unions, NPT threaded fittings, and various other high-pressure connectors. Our service personnel are available 24/7 to provide suitable flexible oilfield hoses for different operating conditions in the oil and gas industry.

Oilfield Hose Solutions

We offer a variety of Oilfield Hose product solutions for oilfield and oil and gas industry applications, helping you build more reliable, flexible transport and equipment connection systems.

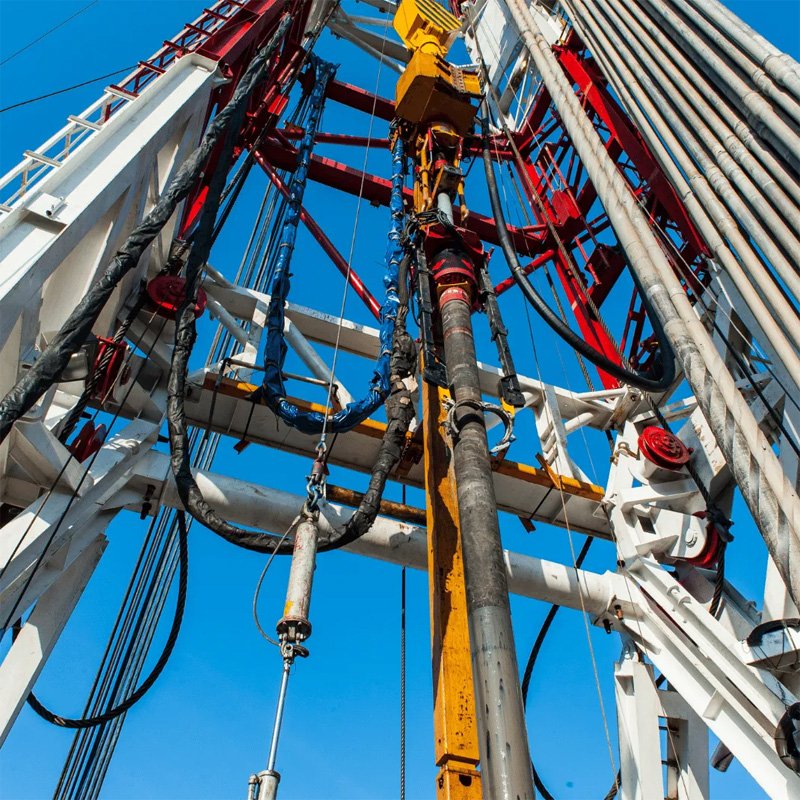

Drilling Industry

It is suitable for conveying media such as drilling fluid, cementing, and mud, as well as for flexible connections between drilling equipment.

Get instant Quote Send Your Inquiry Now

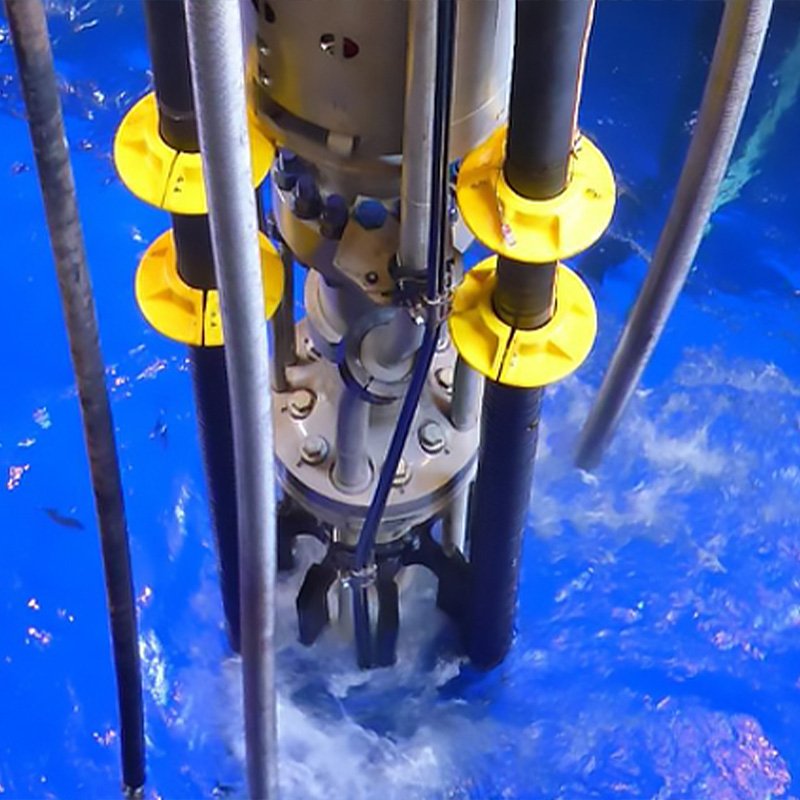

Oil and Gas Industry

Used for flexible connections between pump sets, tanks, manifolds, wellheads and other equipment, adapting to installation needs in complex field environments.

Get instant Quote Send Your Inquiry Now

Get an Instant Quote Now

Oilfield Hose for High-Pressure Oil & Gas Applications

We offer oilfield hoses in various specifications and pressure ratings, supporting different connection methods and customization needs to meet the procurement requirements of engineering projects.

Request Our Latest Price

Technical Specification

Grade A
Grade B
Grade C
Grade D
Grade E

PART NO.	ID		OD	W.P		Proof Pressure P.P		Min B.R	Weight	Coupling Thread
	mm	inch	mm	MPa	Psi	MPa	Psi	mm	kg/m	LP
RDH0038A	38	1 1/2	51	11	1500	22	3000	560	2.19	2
RDH0051A	51	2	65	11	1500	22	3000	900	3.03	2 1/2
RDH0064A	64	2 1/2	78	11	1500	22	3000	1200	3.95	3

PART NO.	ID		OD	W.P		Proof Pressure P.P		Min B.R	Weight	Coupling Thread
	mm	inch	mm	MPa	Psi	MPa	Psi	mm	kg/m	LP
RDH0038B	38	1 1/2	52	14	2000	28	4000	560	2.39	2
RDH0051B	51	2	66	14	2000	28	4000	900	3.25	2 1/2
RDH0064B	64	2 1/2	79	14	2000	28	4000	1200	4.37	3
RDH0076B	76	3	98	14	2000	28	4000	1200	7.76	4
RDH0089B	89	3 1/2	113	14	2000	28	4000	1300	9.95	4
RDH0102B	102	4	127	14	2000	28	4000	1400	12.43	5
RDH0127B	127	5	113	14	2000	28	4000	1500	15.25	6

PART NO.	ID		OD	W.P		Proof Pressure P.P		Min B.R	Weight	Coupling Thread
	mm	inch	mm	MPa	Psi	MPa	Psi	mm	kg/m	LP
RDH0038C	38	1 1/2	55	28	4000	56	8000	560	3.65	2
RDH0051C	51	2	69	28	4000	56	8000	900	5.15	2 1/2
RDH0064C	64	2 1/2	88	28	4000	56	8000	1200	7.86	3
RDH0076C	76	3	105	28	4000	56	8000	1200	13.12	4
RDH0089C	89	3 1/2	121	28	4000	56	8000	1300	16.79	4
RDH0102C	102	4	137	28	4000	56	8000	1400	21.7	5
RDH0127C	127	5	164	28	4000	56	8000	1500	28.46	6

PART NO.	ID		OD	W.P		Proof Pressure P.P		Min B.R	Weight	Coupling Thread
	mm	inch	mm	MPa	Psi	MPa	Psi	mm	kg/m	LP
RDH0051D	51	2	73	35	5000	70	10000	900	6.46	2 1/2
RDH0064D	64	2 1/2	91	35	5000	70	10000	1200	10.75	3
RDH0076D	76	3	107	35	5000	70	10000	1200	14.35	4
RDH0089D	89	3 1/2	123	35	5000	70	10000	1300	18.7	4
RDH0102D	102	4	139	35	5000	70	10000	1400	23.16	5
RDH0127D	127	5	164	35	5000	70	10000	1500	38	6

PART NO.	ID		OD	W.P		Proof Pressure P.P		Min B.R	Weight	Coupling Thread
	mm	inch	mm	MPa	Psi	MPa	Psi	mm	kg/m	LP
RDH0051E	51	2	80	52	7500	104	15000	1000	10.37	2 1/2
RDH0064E	64	2 1/2	101	52	7500	104	15000	1200	17.88	3
RDH0076E	76	3	120	52	7500	104	15000	1200	24.45	4
RDH0089E	89	3 1/2	135	52	7500	104	15000	1300	29.33	4
RDH0102E	102	4	148	52	7500	104	15000	1400	34.24	5
RDH0127E	127	5	189	52	7500	104	15000	1500	55.39	6

Real Customer Reviews

The drilling hoses we bought for our drilling equipment were provided by Jiuyi’s very professional staff. They provided drilling hoses suitable for our high-pressure work conditions, and installation was very convenient.
Khalifa
CEO, U.A.E

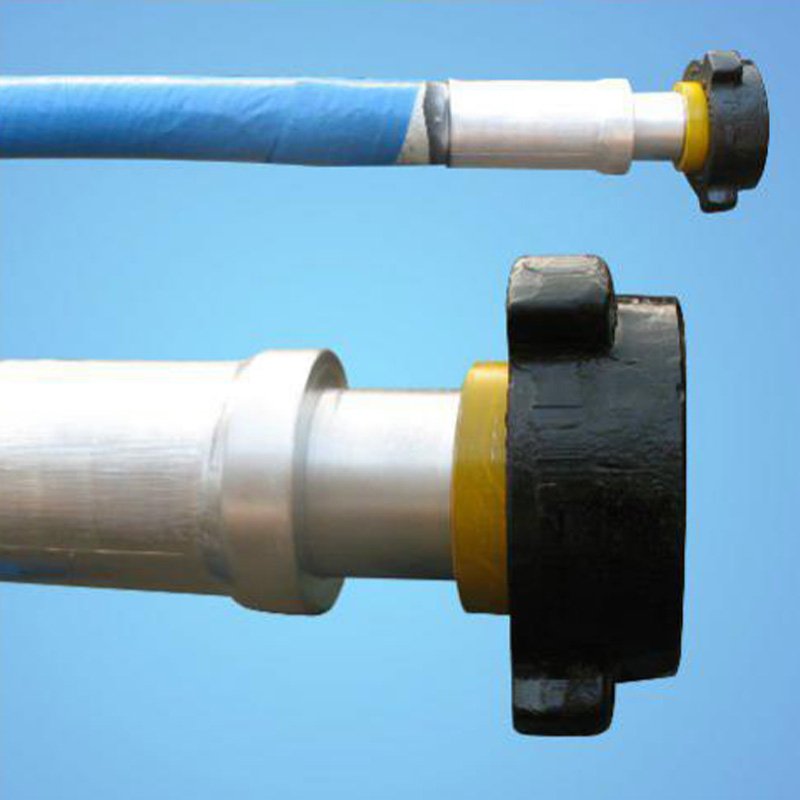

We purchase Kelly hoses 2-3 times a year for our projects. Their drilling hoses are highly flexible and ideal for long-term use in the oil and gas industry. We have tested them multiple times under high-pressure conditions, and the high-pressure hoses performed very well.
Pedro
Director, Brazil

What fluid can oilfield hose convey?

Typical media are drilling mud, water-based fluid, oil-based fluid, crude oil, fuel oil, natural gas and a few chemical liquids. Various medias need different inner rubber materials.

Kinds of oilfield hose?

In the case of oilfield hose, make sure to check the inside diameter, length, working pressure, temperature rang, medium carried, minimum bending radius and connector type. Don’t just judge by hose looks or size.

How does oilfield hose differ from regular industrial hose?

Oilfield hose is generally made to be used in highpressure, heavy duty and challenging oilfield condition. It is more demanding than normal industrial hose in pressure rating, abrasion resistance, oil resistance, connector structure and safety.

How to prolong the life of oilfield hose?

The bending and twisting and pulling of the hose are not allowed to be too violent, and keep a suitable bending radius. Regularly check outer rubber, connectors, reinforcement layer; replace immediately once anything abnormal is found.
