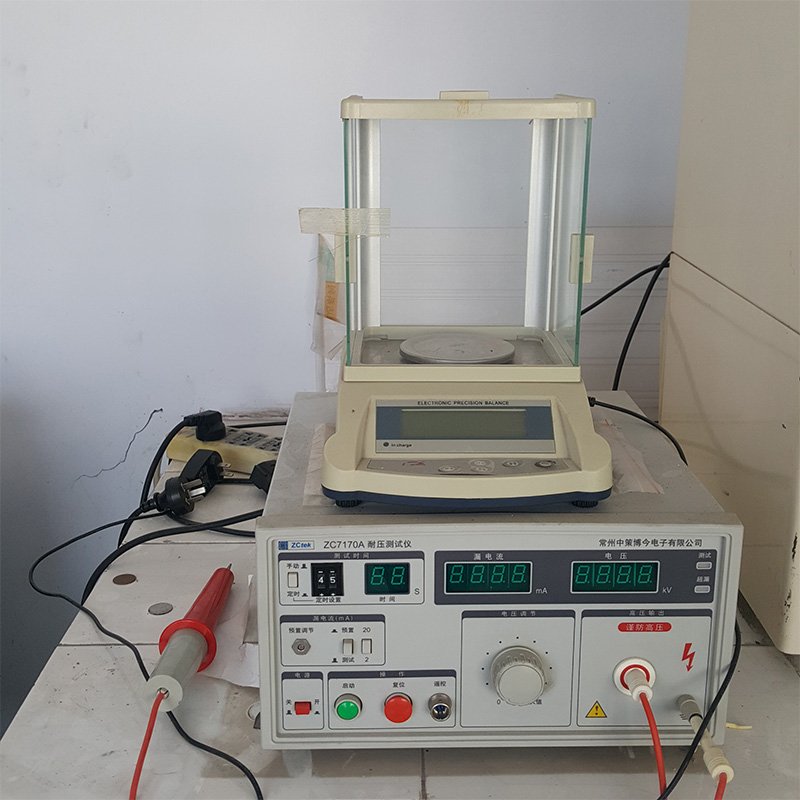

- 100% Water Pressure Test
- Printed Logo &OEM Services
- Wide Range of Applications
- Global Supply Capability
High-performance Steam Hose Supplier Ensures Safe Steam Delivery
Jiuyi specializes in producing high-quality steam hoses designed for industrial applications requiring extreme temperatures, ensuring safe steam delivery. Our steam hoses offer excellent flexibility, heat resistance, pressure resistance, and a long service life. With advanced production technology, rigorous quality control, and a variety of flexible customized steam solutions, we provide safe and reliable steam hose solutions for industries such as manufacturing, chemicals, food processing, and energy.

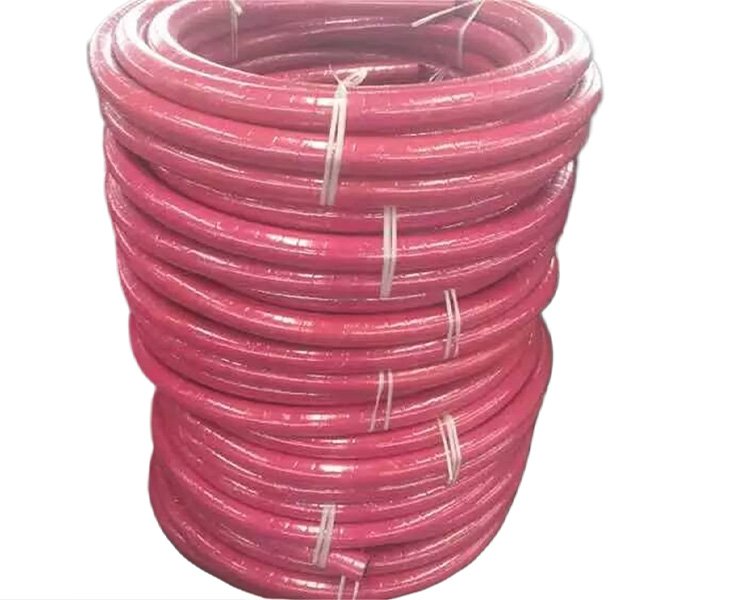

Our Steam Hose Products

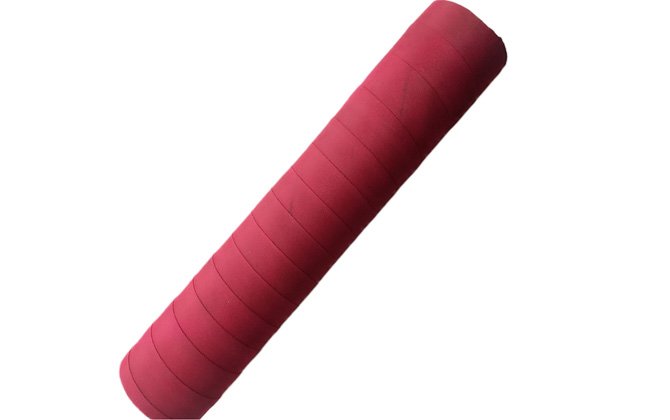

Steam hoses have flexibility, heat resistance and long service life in industrial harsh environments.

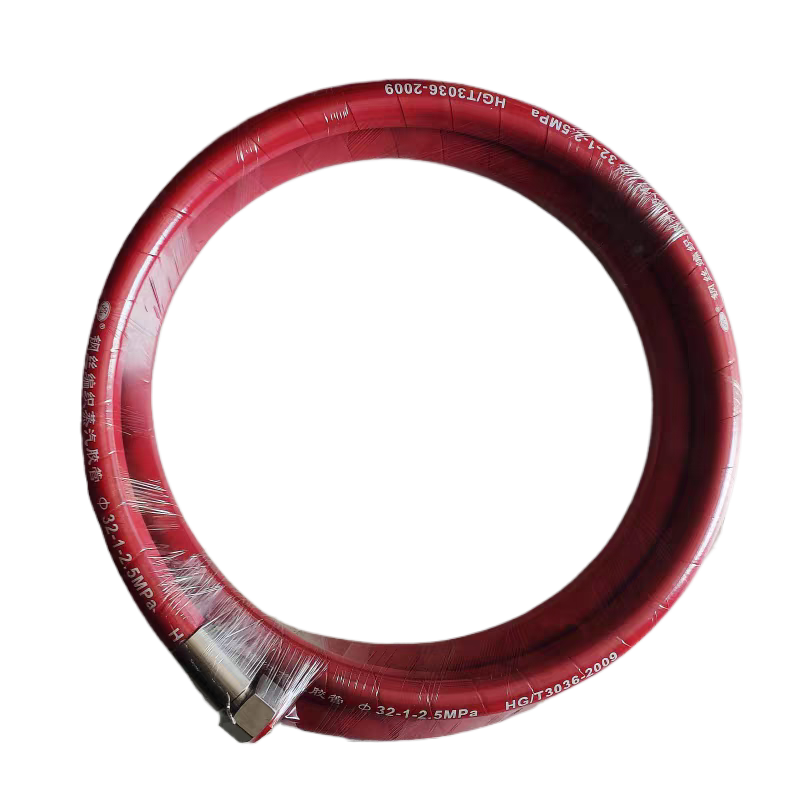

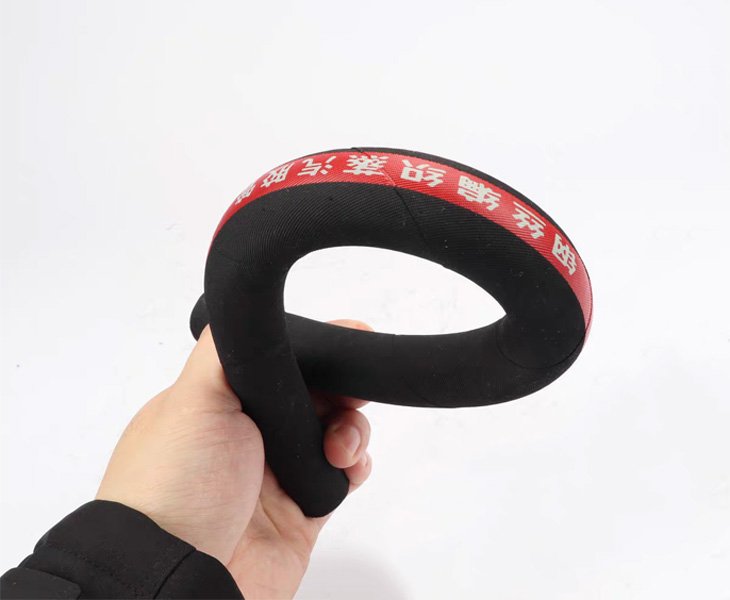

Flexible steam hoses adapt to any high-temperature steam application.

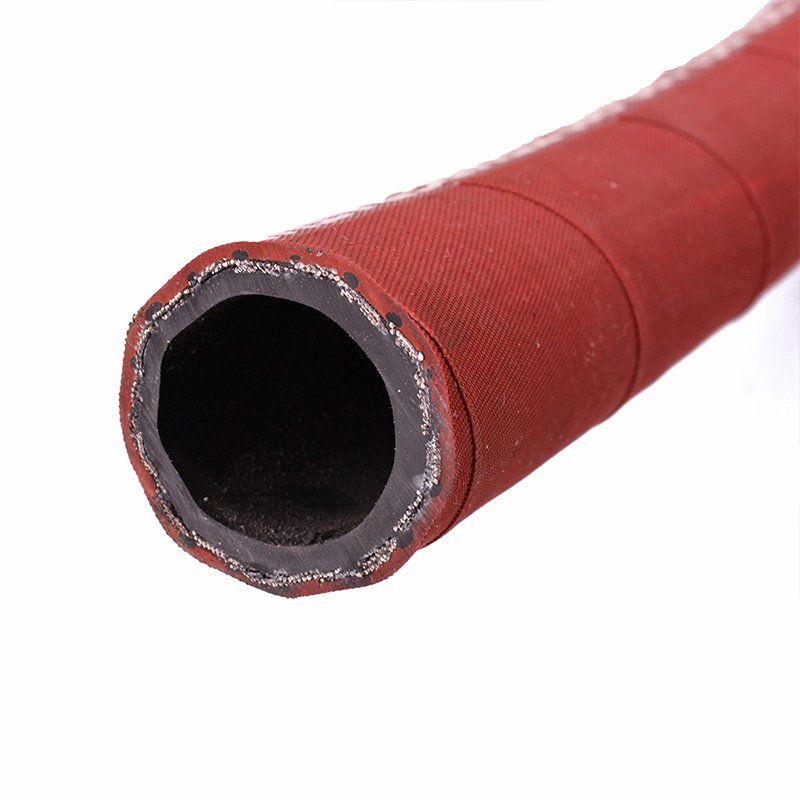

High pressure steam hose with steel wire reinforced ensure normally delivery.
Why You Need High-Quality Steam Hose
Our steam hoses are made of durable materials and have a reinforced structure, ensuring long-term operation in various industrial applications under high-temperature and high pressure conditions.
It can normally transmit steam in various high-temperature equipment.
Custom inner and outer rubber material according your details applications.
Protects against abrasion, aging, and harsh working environments.
Steel wire reinforced structures can withstand continuous high pressure.
Custom various specifications of steam hose, colors, and connector types.
Steam hoses are good flexibility makes it easy to install in confined spaces.
Steam Hose’ low pressure: 5–40 bar and high pressure: 40–600 bar

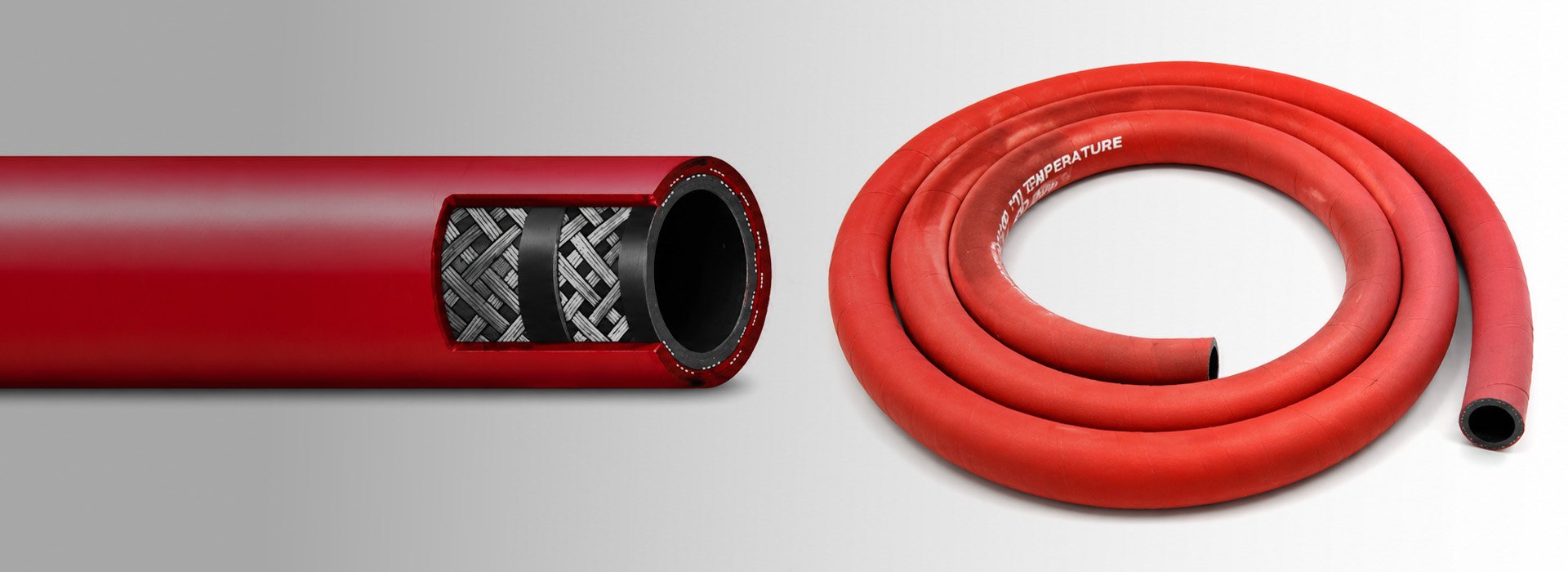

The reinforcement of steam hose options includes fiber-reinforced or steel wire braided.

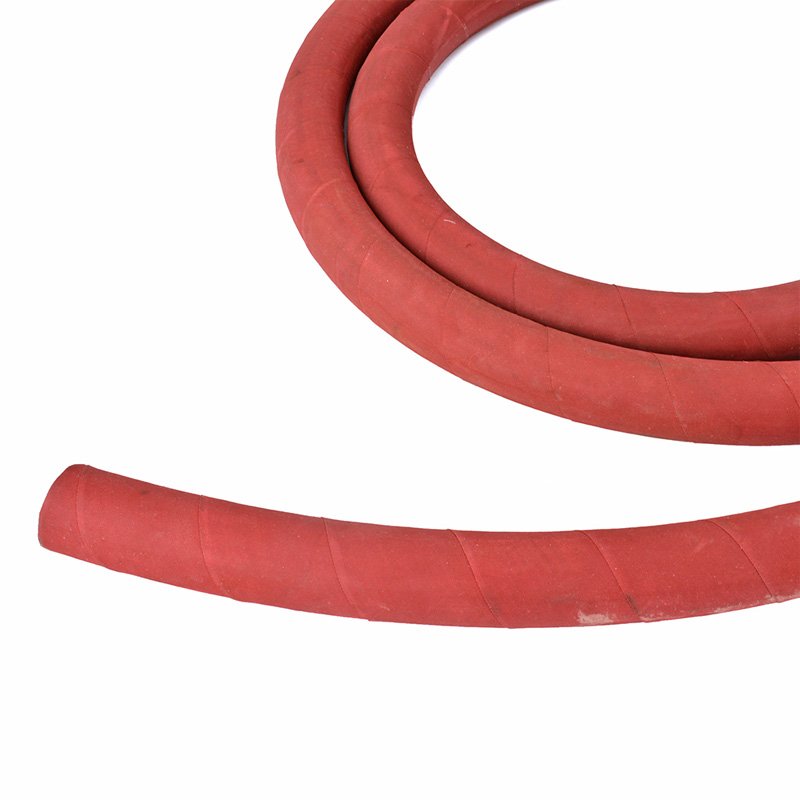

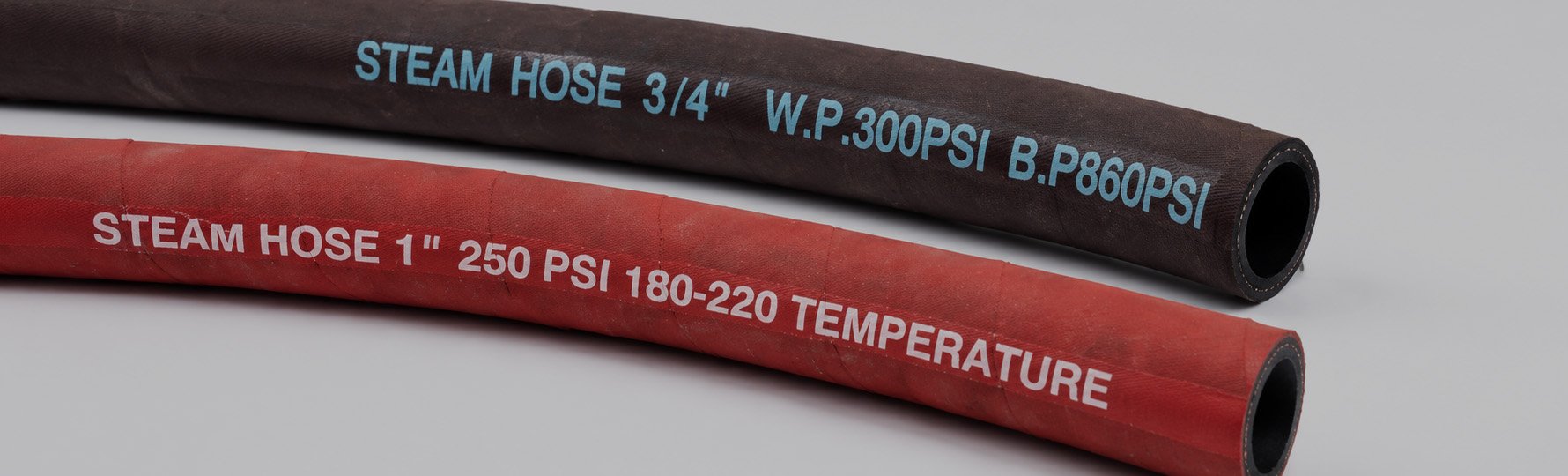

Steam Hoses Designed to Withstand Extreme High Temperatures
Jiuyi’s steam hoses are suitable for transporting high-temperature saturated steam, superheated steam, and hot water. Choose from EPDM rubber, modified rubber, or composite materials according to your needs. Suitable for applications such as high-temperature boilers and thermal power plants. We help customers worldwide solve various high-temperature pipe connection problems.
Custom Flexible Steam Hose Solutions for Different Applications
The specifications, working pressure, and temperature range of steam hoses are not fixed values. We customize different rubber material formulas and adjust different reinforcing layer structures according to your actual steam pipeline operation needs to ensure they can work safely in high-temperature and high-pressure environments.

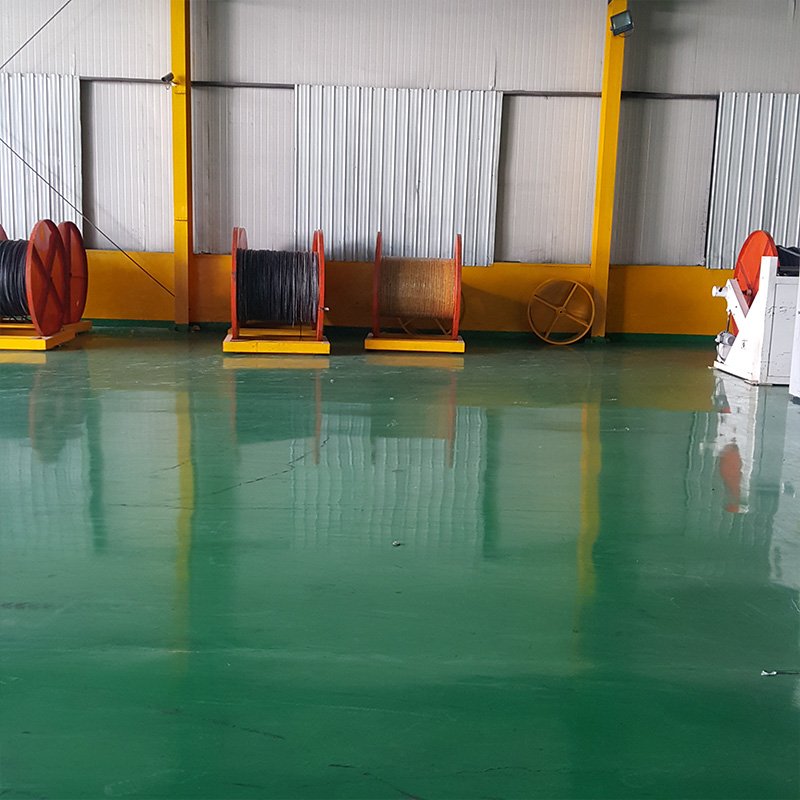

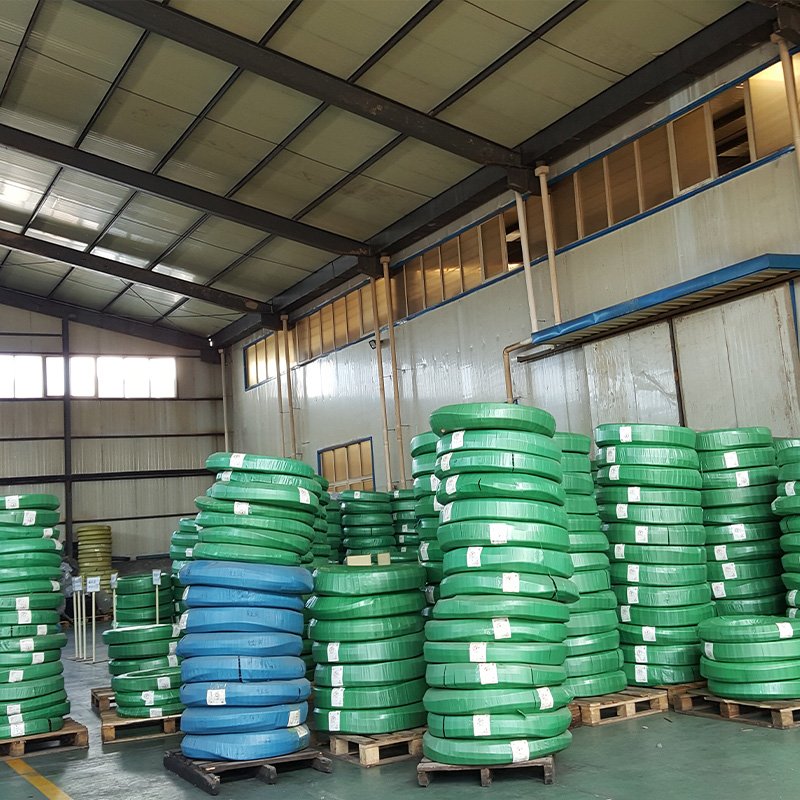

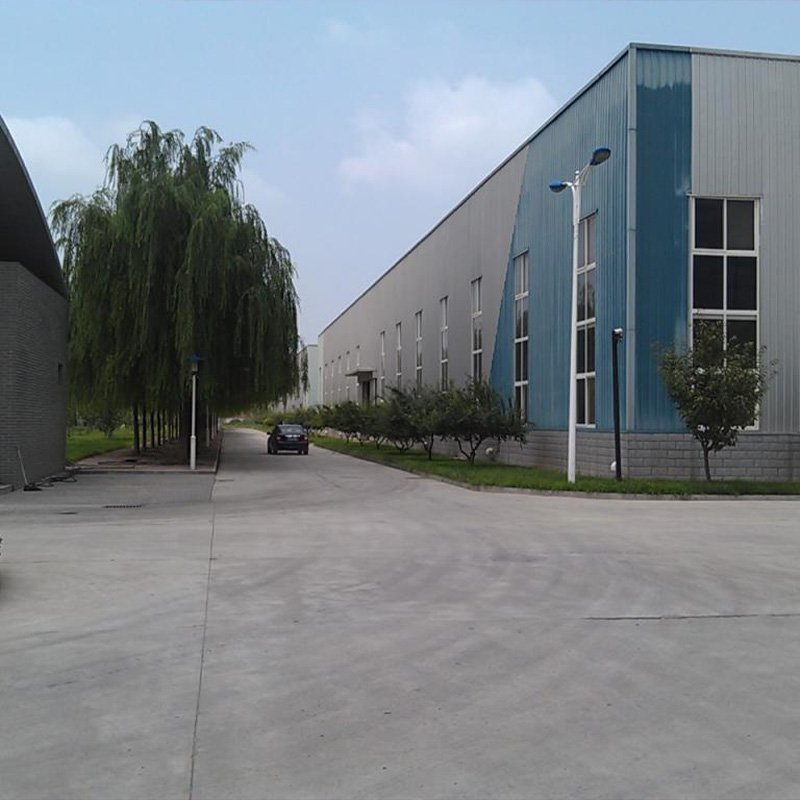

Professional Steam Hose Manufacturer You Can Trust
Jiuyi have modern facilities for producing steam hoses, and its professional technical team rigorously controls the quality of its steam hoses. We have our own temperature-resistant system to ensure that steam hoses will not burst under the cycle of thermal expansion and contraction. We provide reliable steam hose solutions for various industries worldwide.
Steam Hose Solutions for Various Industries
Our steam pipes are suitable for transmitting steam and hot water in high-temperature environments.
The superior rubber material, structure, and professional manufacturing process give our steam pipes excellent heat and chemical resistance, for use in chemical and pharmaceutical manufacturing.

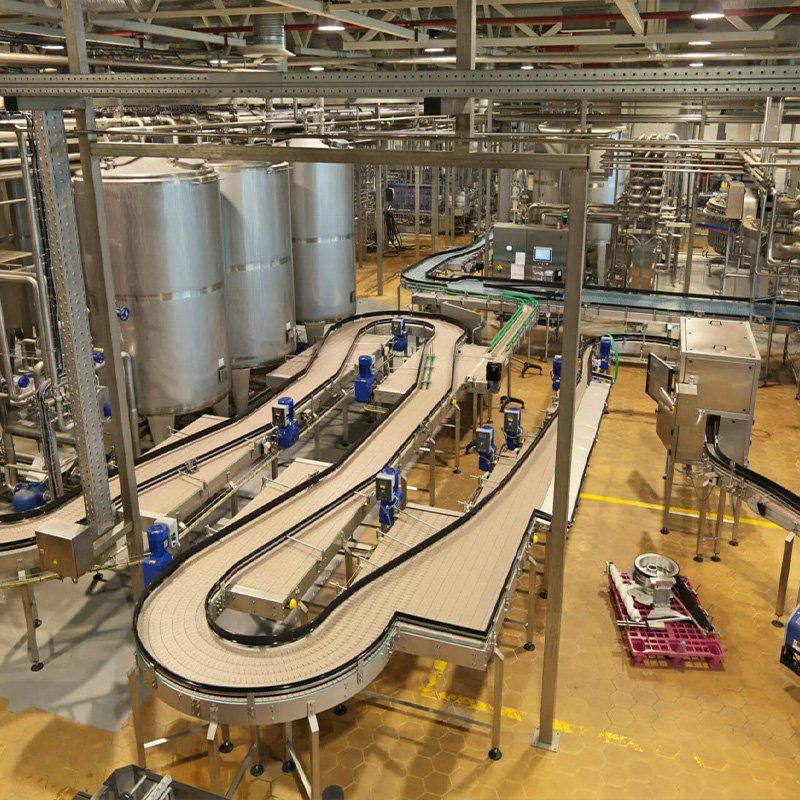

Steam hoses are used in industries requiring high-temperature steam cleaning and are an excellent choice for workshops and factory facilities.
More Details About Jiuyi Steam Hose
- Steam Hose Technical Specification
| PART NO. | W/B | ID | OD | Working Pressure | Burst Pressure | Minimum Bend Radius | Length | |||
| DN | inch | mm | MPa | Psi | MPa | Psi | mm | metres | ||
| JY-0010 | 1W | 10 | 3/8“ | 21.5 | 1 | 150 | 4 | 570 | 130 | 20/50 |
| JY-0013 | 13 | 1/2″ | 24.5 | 1 | 150 | 4 | 570 | 180 | 20/50 | |
| JY-0016 | 16 | 5/8″ | 27.5 | 1 | 150 | 4 | 570 | 205 | 20/50 | |
| JY-0019 | 19 | 3/4″ | 30.5 | 1 | 150 | 4 | 570 | 240 | 20/50 | |
| JY-0022 | 22 | 7/8″ | 33.5 | 1 | 150 | 4 | 570 | 280 | 20/50 | |
| JY-0025 | 25 | 1″ | 37 | 1 | 150 | 4 | 570 | 300 | 20/50 | |
| JY-0032 | 32 | 1-1/4″ | 44 | 1 | 150 | 4 | 570 | 420 | 20/40 | |
| JY-0038 | 38 | 1-1/2″ | 50.5 | 1 | 150 | 4 | 570 | 500 | 20/40 | |
| JY-0045 | 45 | 1-3/4″ | 57.5 | 1 | 150 | 4 | 570 | 500 | 20/40 | |
| JY-0051 | 51 | 2″ | 63.5 | 1 | 150 | 4 | 570 | 630 | 20/40 | |
| JY-0064 | 64 | 2-1/2″ | 77.5 | 1 | 150 | 4 | 570 | 700 | 20/40 | |
| JY-0010 | 2W | 10 | 3/8″ | 23 | 3.5 | 500 | 7 | 1000 | 130 | 20/50 |
| JY-0013 | 13 | 1/2″ | 26 | 3.5 | 500 | 7 | 1000 | 180 | 20/50 | |
| JY-0016 | 16 | 5/8″ | 30 | 3.5 | 500 | 7 | 1000 | 205 | 20/50 | |
| JY-0019 | 19 | 3/4″ | 33 | 3.5 | 500 | 7 | 1000 | 240 | 20/50 | |
| JY-0022 | 22 | 7/8″ | 35 | 3.5 | 500 | 7 | 1000 | 280 | 20/50 | |
| JY-0025 | 25 | 1″ | 40 | 3.5 | 500 | 7 | 1000 | 300 | 20/50 | |
| JY-0032 | 32 | 1-1/4″ | 48 | 3.5 | 500 | 7 | 1000 | 420 | 20/40 | |
| JY-0038 | 38 | 1-1/2″ | 54 | 3.5 | 500 | 7 | 1000 | 500 | 20/40 | |
| JY-0045 | 45 | 1-3/4″ | 59 | 3.5 | 500 | 7 | 1000 | 500 | 20/40 | |
| JY-0051 | 51 | 2″ | 69 | 3.5 | 500 | 7 | 1000 | 630 | 20/40 | |
| JY-0064 | 64 | 2-1/2″ | 81 | 3.5 | 500 | 7 | 1000 | 700 | 20/40 | |
| JY-0076 | 76 | 3” | 94 | 3.5 | 500 | 7 | 500 | 20/40 | ||
| JY-0102 | 102 | 4” | 122 | 3.5 | 500 | 7 | 600 | 20/40 | ||
Real Customer Reviews of Our Steam Hoses
Their steam pipes are easy to install. Our workshop equipment requires extremely high temperatures for steam cleaning, and their steam pipes perform very well here.
GeorgeCEO, GreeceWe tested steam pipe samples from many suppliers, and we were most satisfied with the quality of Jiuyi Company. Their prices were also very reasonable, and their sales staff were particularly professional.
Gong YooEngineer, Korea
Select a steam hose depending on the steam pressure, temperature, steam type, application environment, and flexibility needed. Make sure you consider the specifications of the hose, the safety factor, and that the hose is compatible with the medium for your equipment before you buy the suitable model.
Yes, they are suitable for hot water service. But the pressure and temperature ratings may not be the same for steam service as for hot water service, so it’s important to choose a hose considering your actual working conditions.
Heat, over-pressure, poor storage, chemical or oil contamination and use beyond the rated cover of a hose can all contribute to steam hose failure. With correct choice, and care service life can be prolonged.
Yes, the steam pipe can be customized size, shape, length, fittings, pressure rating and cover options. Customized solutions are developed to adapt to specific requirements of industry and installation scenarios.
